ATMOS 41 Gen 2
All-In-One Weather Station

ATMOS 41 Gen 2
THE WEATHER STATION PROBLEM
Request a quote

Most research-grade weather stations are cluttered, complicated, and frustrating to install and maintain. Wiring and programming can be a nightmare, and finding room to mount everything is a challenge. All-in-one weather stations solve these problems, but the tradeoff is flexibility. Adding just one more sensor often requires an extra logger, making the system more complicated and more expensive.

More measurements. Lower cost.

The ATMOS 41 Gen 2 weather station is one of the first affordable, research-grade all-in-one weather station that fulfills all your weather monitoring needs but doesn’t restrain you when you want to make other measurements. All weather data (e.g., humidity, temperature, or atmospheric pressure) are transmitted over a single wire. That means you don’t have to use all of the ports on your data logger just for weather measurements. And, if you are using the ATMOS 41 weather station with our ZL6 data loggers, you have the flexibility to add any of our other sensors, like soil moisture.

12
weather sensors

Request a quote

Simple, compact, and connected

The ATMOS 41 weather station works seamlessly with the ZL6 for simple, plug-and-play atmospheric data logging and cloud-based data storage and management. You can set up an entire weather monitoring system without any complex wiring or programming. The ATMOS 41 weather station is a simple, compact, connected device with the flexibility to do more than weather measurements.

Second generation innovations

METER’s in-house research and development team have been working hard to make the ATMOS 41 Gen 2 more accurate, durable, and reliable than ever before. Wind speed can now be measured up to 60 m/s, meeting the requirements of even more industry standards, such as the IEC61724-1, making it ideal for applications such as utility-scale photovoltaic (PV) systems, and closer than ever to WMO guidelines.

The Gen 2 also provides a precipitation electrical conductivity (EC) measurement, more accurate precipitation measurements thanks to dual rain gauges, easier installation with built-in leveling bracket, and the option of MODBUS communication. Add in improved durability with more UV-resistant components, easier maintenance and serviceability, and a faster WMO-compliant sensor scan rate, and you’ve got the next generation in research-grade all-in-one weather stations.

METER is trusted by

TAHMO
Brigham Young University
Washington State University AgWeatherNet
Campbell Scientific
THE WEATHER STATION, REIMAGINED
Request A Quote

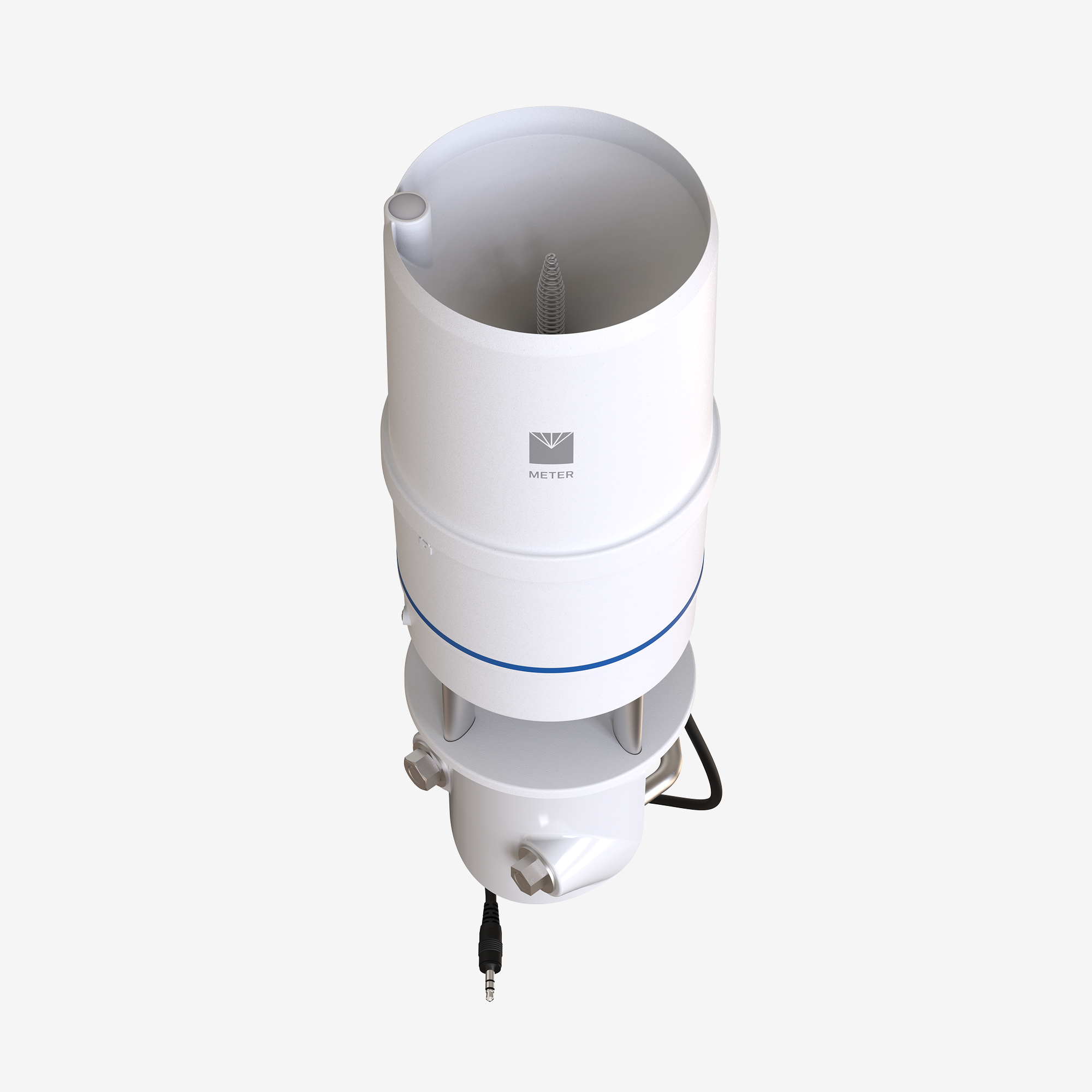

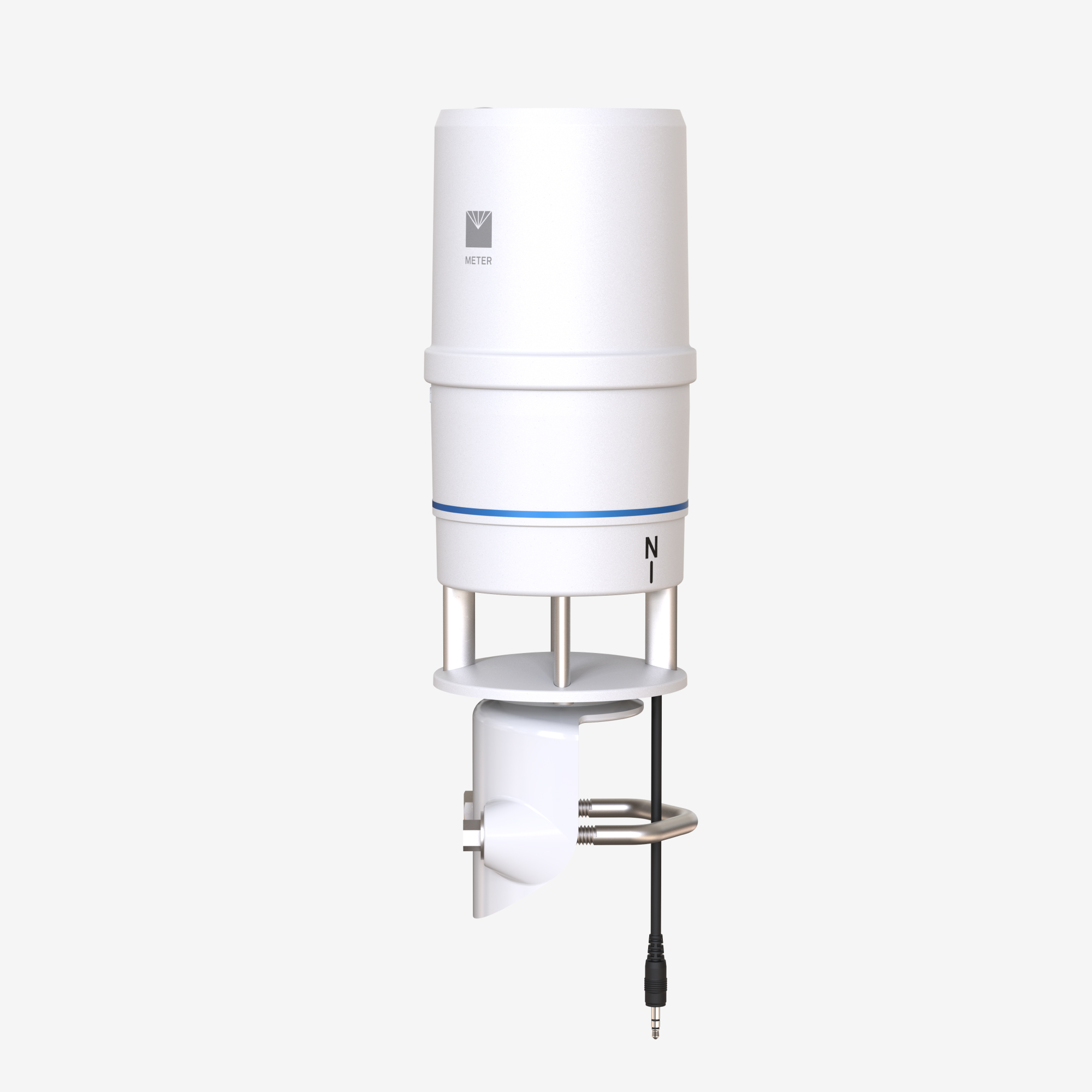

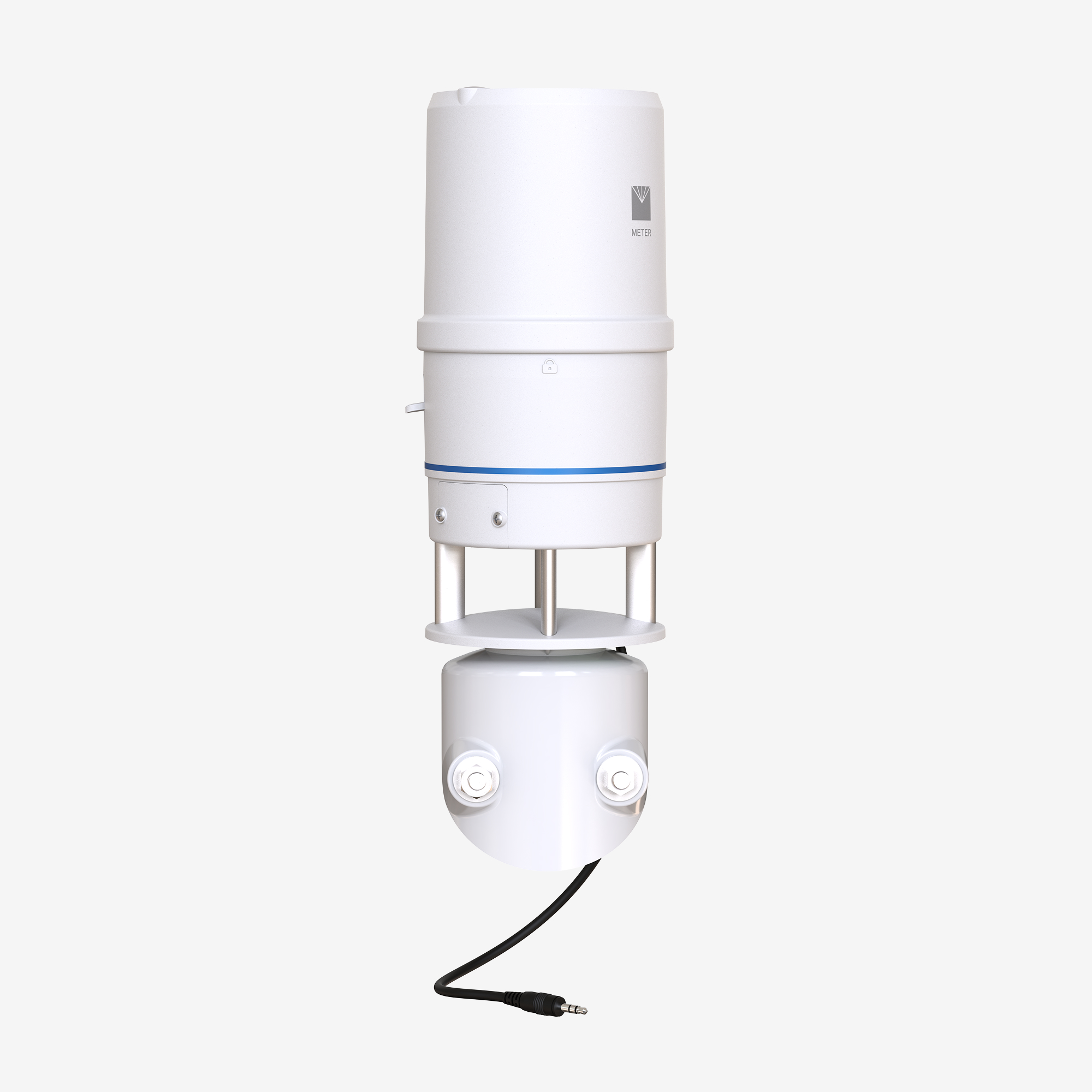

The ATMOS 41 weather station packages 12 weather sensors into a single, compact device for monitoring atmospheric conditions. It was designed for continuous deployment in harsh climates, such as sub-Saharan Africa and the extreme conditions around photovoltaic (PV) systems. There is only one moving part, eliminating virtually all failure points. No oiling or replacing bearings. Just reliability you can continue to count on.

More weather station sensors than other solutions

Most all-in-one weather stations give you the option to measure solar radiation or precipitation, but not both. The ATMOS 41 weather station provides both measurements in one device, so you never have to compromise.

Request a quote

Only one moving part

The one moving part on the Gen 2 is the tipping cup to provide better resolution at both high and low precipitation thresholds. Gold-plated pins measure each drop of rain using electric conductivity, ensuring a consistent 0.017 mm resolution for dew, rain, and heavy precipitation events. A sonic anemometer and internal accelerometer both ensure consistent, precise measurements without constant maintenance by insuring the stays level and motionless. Limiting the number of moving parts means the ATMOS 41 Gen 2 anemometer is also accurate at low wind speeds. It even has an accelerometer, so you’ll always know the sensor is level and you’re getting accurate data. And leveling the weather station is easier than ever with the new built-in leveling bracket.

“​​When we were deciding on equipment we asked ourselves: What kind of technology should we use? It had to provide high data integrity. It had to be easy to deploy and maintain. And it had to be cost effective. There’s not a lot of people in that sector. METER systems are low profile, they’re affordable, and the reliability is there.”

 – Kevin Hyde, Montana Mesonet Manager

Request a quote

Feature summary

  • Research weather station measures 12 weather variables including: air temperature, relative humidity, vapor pressure, barometric pressure, wind speed, gust and direction, solar radiation, dual precipitation, precipitation EC, lightning strike counter and distance
  • Wind speed measurements up to 60 m/s

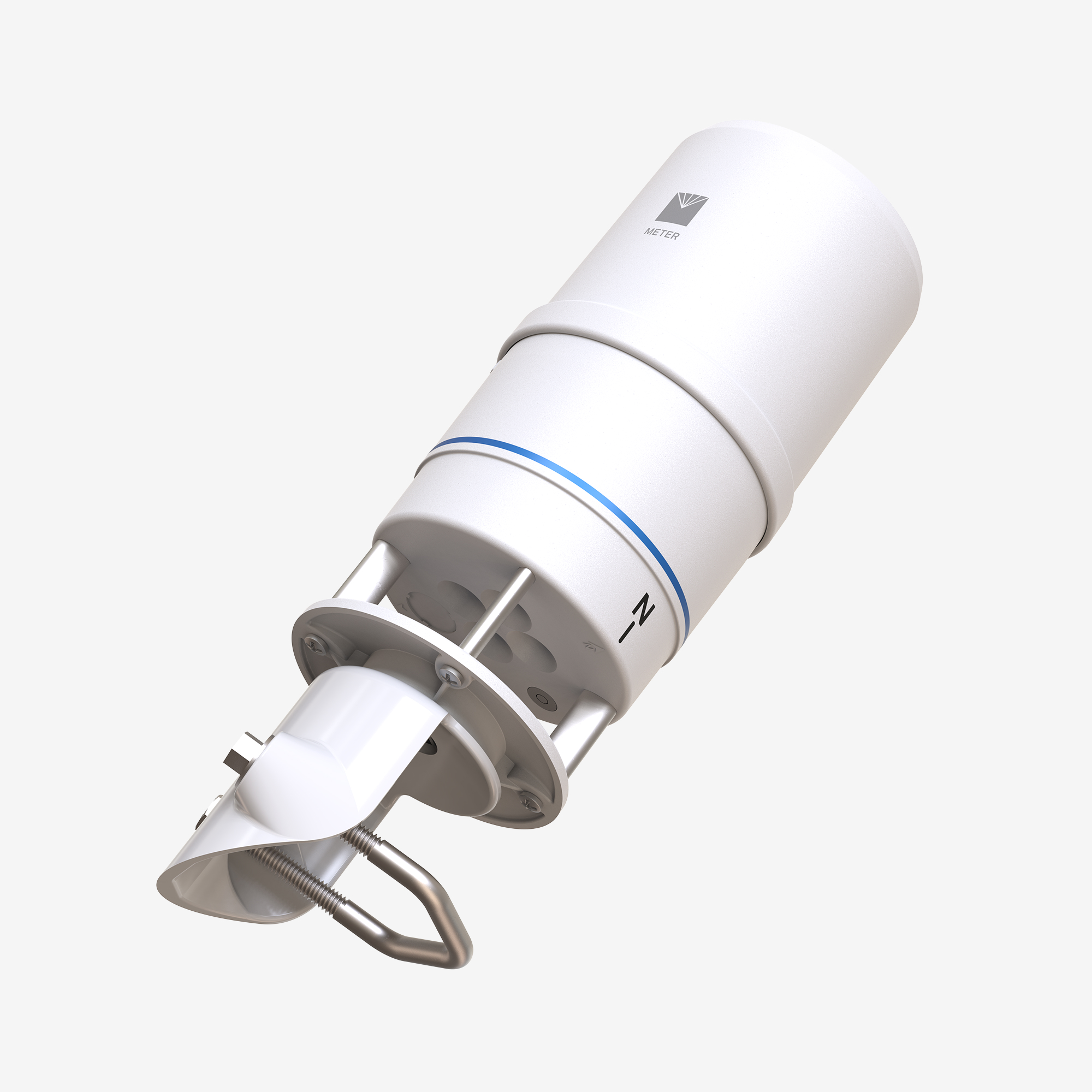

  • Easy installation with built-in leveling bracket
  • Easy maintenance and serviceability with new side panel for accessing internal components
  • Only one moving part
  • All weather station data transmitted over a single wire
  • Choose either Digital SDI-12 communication or combined MODBUS and Digital SDI-12 communication
  • WMO-compliant sensor scan rate
  • Connect to ZL6 for data capture and management
  • Designed for continuous deployment in harsh climates
  • No louvered radiation shield to attract bugs
  • Accurate at low wind speeds because of limited moving parts will cause friction or fail
  • Detects fine-scale wind speed variations with 0.01 m/s resolution
  • Integrated weather station accelerometer detects if sensor is off-level
  • Integrated spring acts as a rain gauge filter to keep out large particles but still allow enough water flow

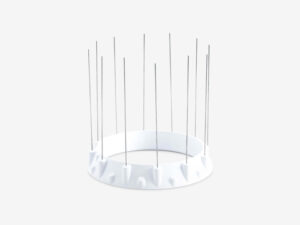

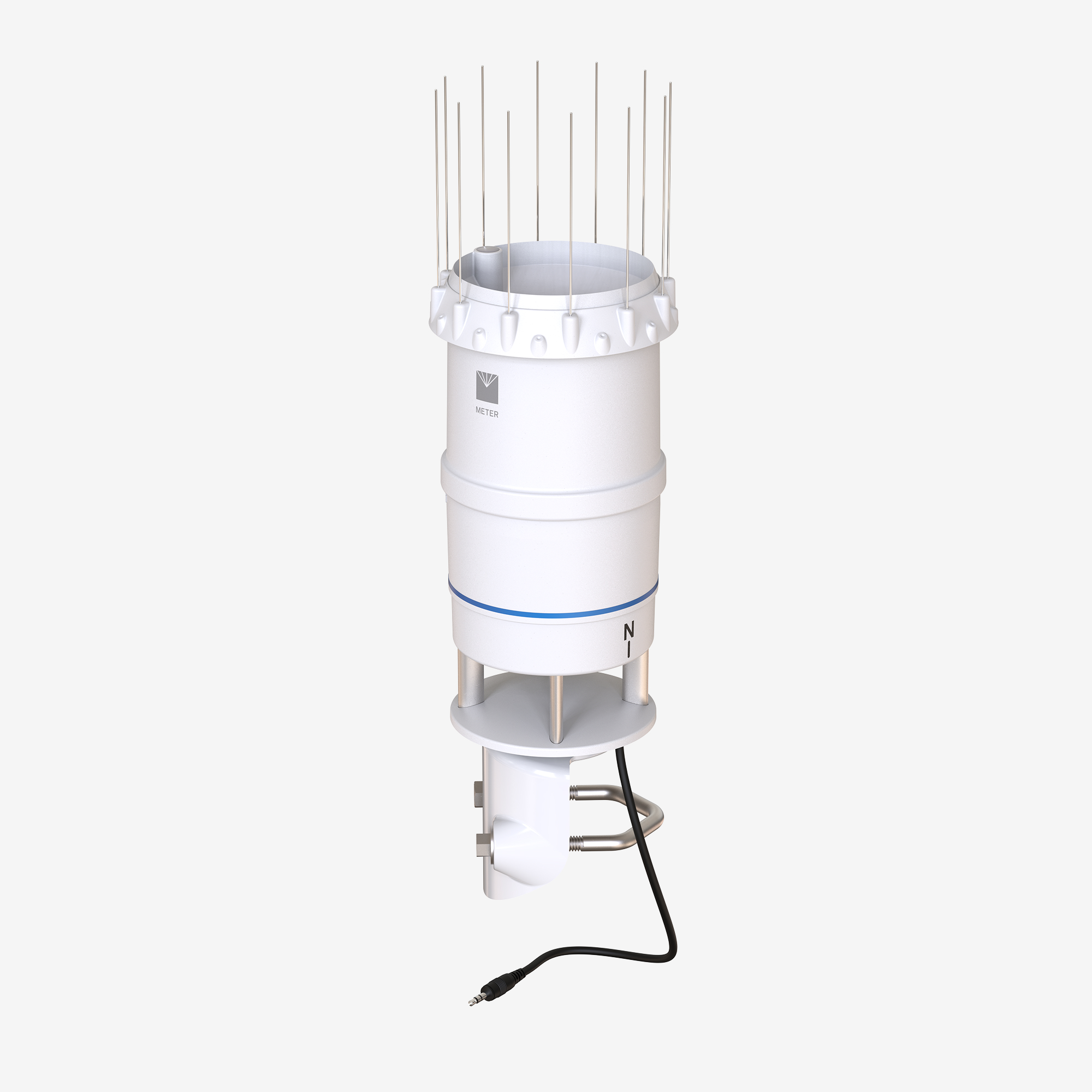

  • Optional bird deterrent fits perfectly on the weather station funnel


wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Features ATMOS 41W ATMOS 41 Gen 2 ATMOS 22 ATMOS 14
1 eric.lozaga 20/02/2024 01:14 PM eric.lozaga 12/12/2024 01:06 PM Air Temperature ✓ ✓ ✓
2 eric.lozaga 20/02/2024 01:14 PM eric.lozaga 12/12/2024 01:06 PM Relative Humidity ✓ ✓ ✓
3 eric.lozaga 20/02/2024 01:14 PM eric.lozaga 12/12/2024 01:06 PM Barometric Pressure ✓ ✓ ✓
5 eric.lozaga 20/02/2024 01:15 PM eric.lozaga 12/12/2024 01:06 PM Vapor Pressure ✓ ✓ ✓
6 eric.lozaga 20/02/2024 01:15 PM eric.lozaga 12/12/2024 01:06 PM Wind Speed ✓ ✓ ✓
7 eric.lozaga 20/02/2024 01:15 PM eric.lozaga 12/12/2024 01:06 PM Wind Direction ✓ ✓ ✓
8 eric.lozaga 20/02/2024 01:15 PM eric.lozaga 12/12/2024 12:53 PM Wind Gust Up to 30 m/s Up to 60 m/s Up to 30 m/s
9 eric.lozaga 20/02/2024 01:15 PM eric.lozaga 12/12/2024 01:06 PM Solar Radiation ✓ ✓
10 eric.lozaga 20/02/2024 01:15 PM eric.lozaga 12/12/2024 01:06 PM Precipitation ✓ ✓
11 eric.lozaga 20/02/2024 01:16 PM eric.lozaga 12/12/2024 01:05 PM Precipitation EC ✓ ✓
12 eric.lozaga 20/02/2024 01:16 PM eric.lozaga 12/12/2024 01:05 PM Lightning Strike Count ✓
13 eric.lozaga 20/02/2024 01:16 PM eric.lozaga 12/12/2024 01:05 PM Lightning Strike Distance ✓
14 eric.lozaga 20/02/2024 01:16 PM eric.lozaga 12/12/2024 01:05 PM No Moving Parts Only Tipping Cup Only Tipping Cup ✓ ✓
15 eric.lozaga 20/02/2024 01:17 PM eric.lozaga 12/12/2024 01:05 PM Plug-and-Play Installation No Plug, Just Play ✓ ✓ ✓
16 eric.lozaga 20/02/2024 01:17 PM eric.lozaga 12/12/2024 01:05 PM All Data via 1 Cable No Cables ✓ ✓ ✓
17 eric.lozaga 20/02/2024 01:17 PM eric.lozaga 12/12/2024 01:05 PM Compatible with ZL6 Loggers N/A ✓ ✓ ✓
18 eric.lozaga 20/02/2024 01:17 PM eric.lozaga 12/12/2024 01:05 PM Compatible with Some 3rd Party Loggers N/A ✓ ✓ ✓
19 eric.lozaga 20/02/2024 01:18 PM eric.lozaga 12/12/2024 01:04 PM Powered via Onboard Solar Panels ✓*
20 eric.lozaga 20/02/2024 01:18 PM ariel.dearth 23/02/2024 01:43 PM Data Sent to ZENTRA Cloud Standalone - Direct to ZENTRA Via Data Logger Via Data Logger Via Data Logger
21 eric.lozaga 20/02/2024 01:18 PM eric.lozaga 12/12/2024 01:04 PM Accurate at Low Wind Speeds ✓ ✓ ✓ N/A
22 eric.lozaga 20/02/2024 01:19 PM eric.lozaga 12/12/2024 01:03 PM On-board Leveling ✓ ✓
23 eric.lozaga 21/02/2024 10:33 AM ariel.dearth 21/02/2024 10:44 AM LEARN MORE ATMOS 41W ATMOS 41 ATMOS 22 ATMOS 14
24 eric.lozaga 12/12/2024 01:07 PM eric.lozaga 12/12/2024 01:21 PM *powered by onboard AA rechargable batteries
