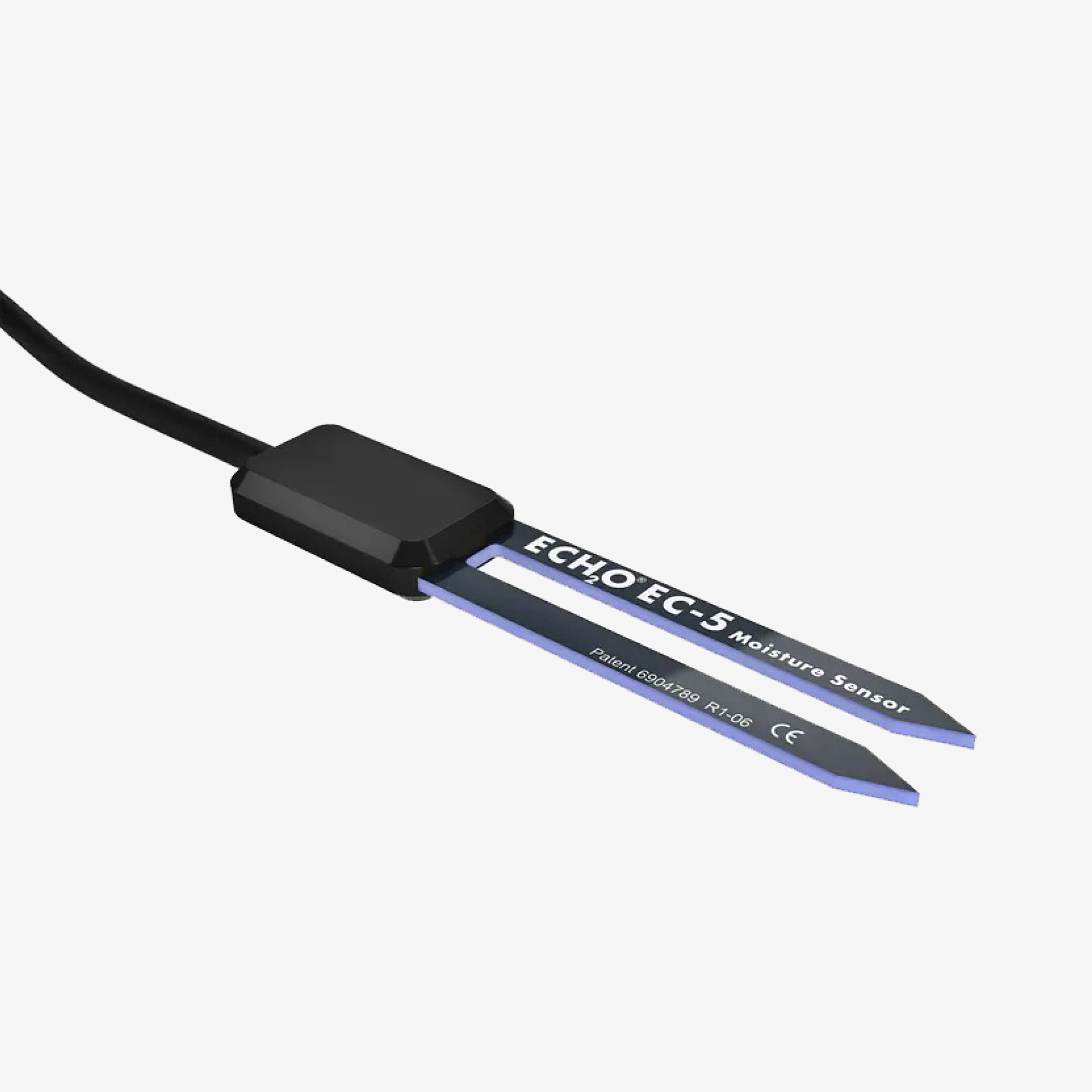

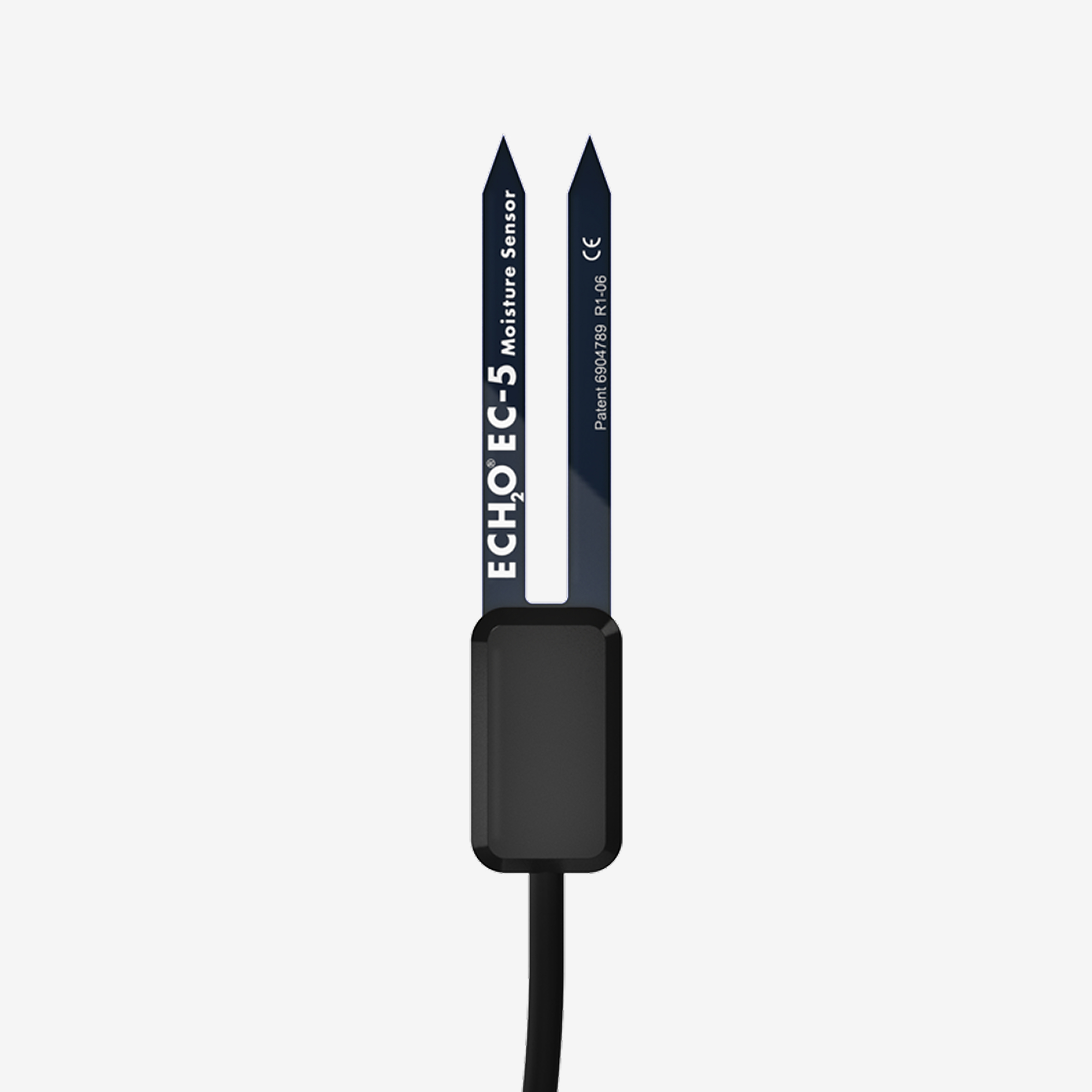

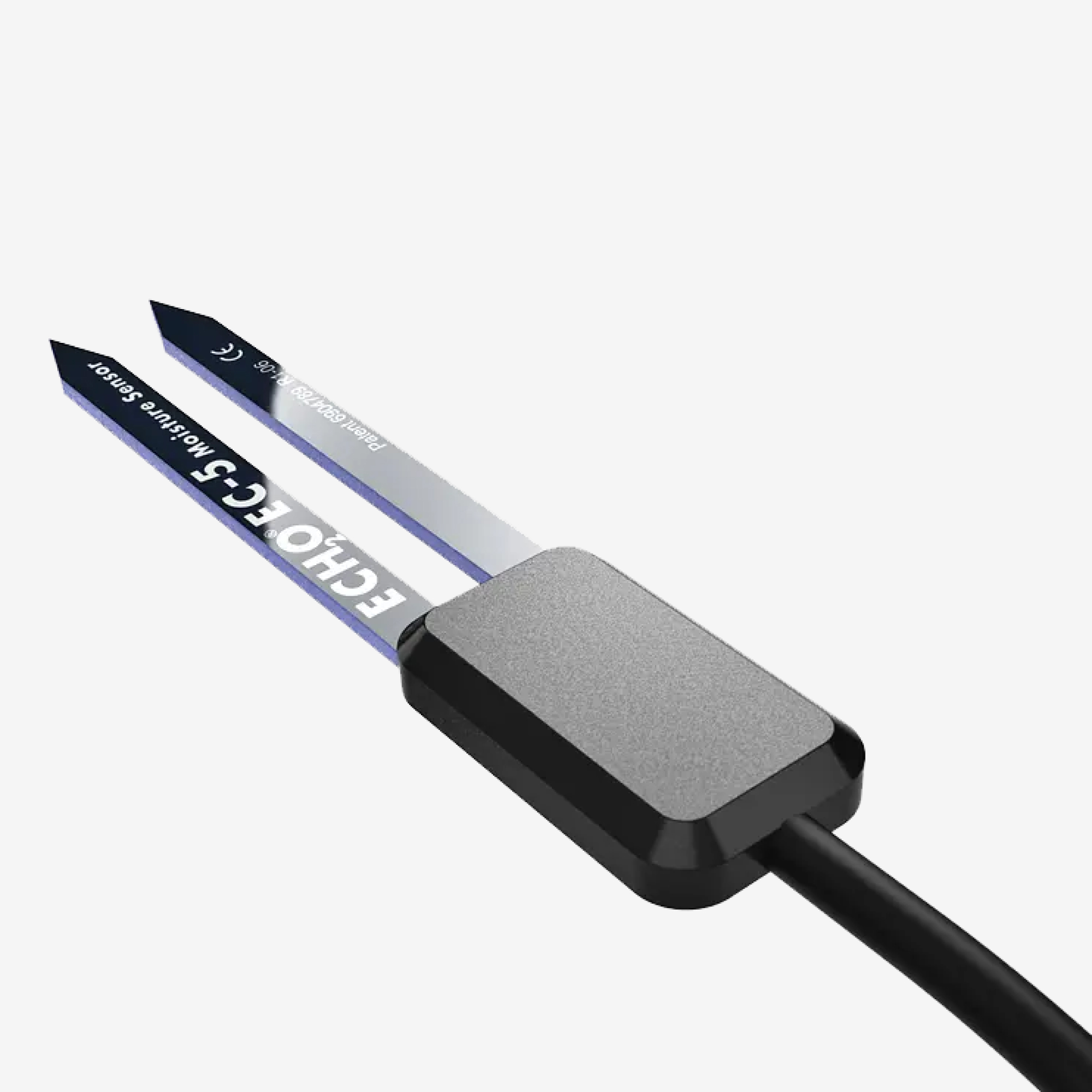

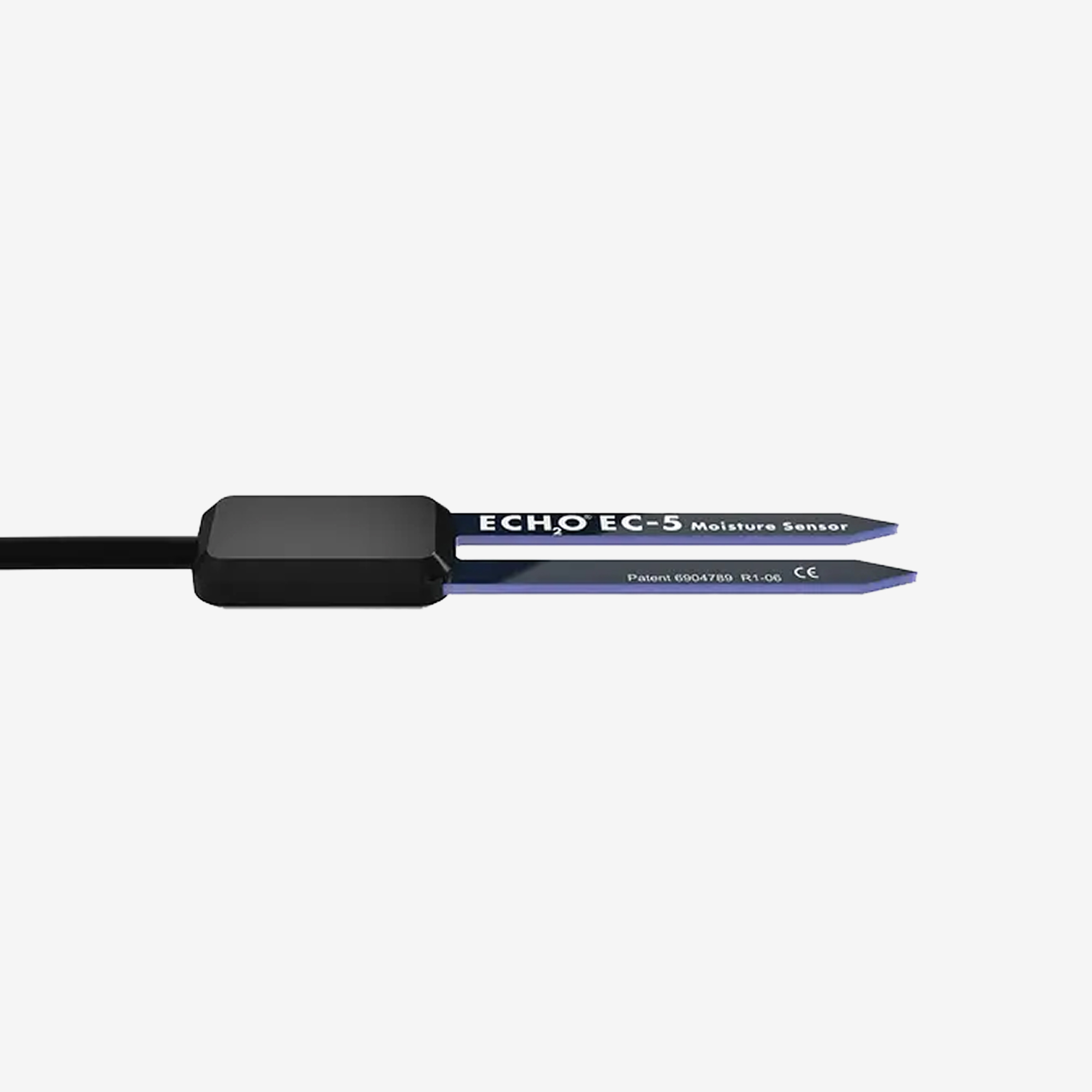

ECH2O EC-5

Soil Moisture Sensor

The ECH2O EC-5 soil moisture sensor delivers research-grade accuracy at a price that makes large sensor networks economically practical.

Simple soil moisture sensor
Minimizes salinity and textural effects
Easy integration

REQUEST A QUOTE

Overview / Features

Engineered for accuracy

The EC-5 determines volumetric water content (VWC) by measuring the dielectric constant of the media using capacitance/frequency domain technology. Its 70 MHz frequency minimizes salinity and textural effects, making this sensor accurate in almost any soil or soilless media. Factory calibrations are included for mineral soils, potting soils, rockwool, and perlite.

Easy installation

Just 5 cm long with a ~0.2 L measurement volume, this handy little sensor is easy to install in the field and can also be used in nursery pots. The EC-5’s compact design makes it easy to push directly into undisturbed soil to ensure good accuracy.

Easy integration

The EC-5’s analog signal means no-hassle integration with systems manufactured by other companies.

Cover more space

The EC-5 delivers research-grade accuracy at a price that makes large sensor networks economically practical. You can adequately characterize your site with soil moisture sensors at multiple depths and locations, even if you’re on a tight budget.

Feature summary

Measures volumetric water content
Affordable: ideal for large sensor networks
Simple sensor with excellent accuracy
Small volume of influence (eg., field spatial variability, lab column studies, or greenhouse research)
70 MHz frequency minimizes salinity and textural effects
Factory calibrations included for mineral soils, potting soils, rockwool, and perlite
Small size means easy installation
Plug and play capability
Easy integration with other systems

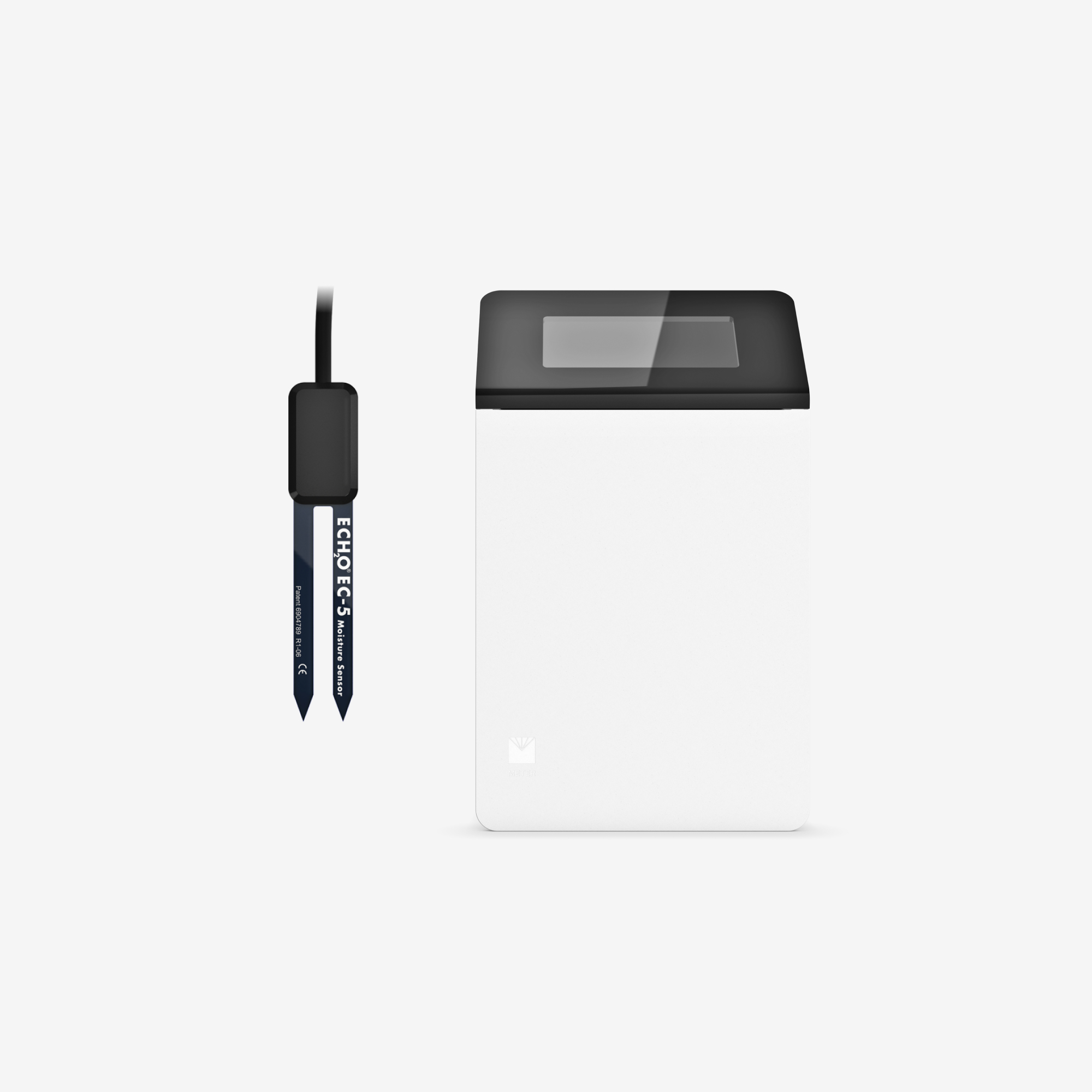

Use with ZL6 data logger to collect data remotely

Specifications: TECHNICAL SPECIFICATIONS

Volumetric Water Content

Range

0 – 100 %

Resolution

0.001 m³/m³ VWC in mineral soils, 0.25% in growing media

Accuracy

Generic Calibration: ±0.03 m³/m³ typical in mineral soils that have solution EC <8 dS/m

Medium Specific Calibration: ±0.02 m³/m³ in any porous medium (± 2%)

Measurement Specifications

Measurement Volume

See comparison article

Communication Specifications

Output

10%–50% of excitation voltage (250–1,250 mV at 2,500 mV excitation)

Data Logger Compatibility

METER data loggers (ZL6, EM50/60 series, Em5b) or any data acquisition systems capable of switched 2.5–3.6 VDC excitation and single-ended voltage measurement at greater than or equal to 12-bit resolution.

NOTE: These calibration constants only apply to 2,500-mV excitation; use of these numbers with any other excitation voltage results in erroneous readings!

Physical Specifications

Dimensions

Length: 8.9 cm (3.50 in)

Width: 1.8 cm (0.71 in)

Height: 0.7 cm (0.28 in)

Prong Length

5.0 cm (1.97 in)

Operating Temperature Range

Minimum: -40.00 °C

Typical: NA

Maximum: 60.00 °C

NOTE: Sensors may be used at higher temperatures under certain conditions; contact Customer Support for assistance.

Cable Length

5 m (standard)
40 m (maximum custom cable length)

NOTE: Contact Customer Support if a nonstandard cable length is needed.

Connector Types

3.5-mm stereo plug connector or stripped and tinned wires

Electrical and Timing Characteristics

Supply Voltage (VIN to GND)

Minimum: 2.5 VDC at 10 mA

Typical: NA

Maximum: 3.6 VDC at 10 mA

Measurement Duration

Maximum: 10 ms

Other

Compliance

EM ISO/IEC 17050:2010 (CE Mark)
2014/30/EU
2011/65/EU
EN61326-1:2013
EN50581:2012

Prop 56 warning

GSA

View GSA details

Support / FAQ

Using Scwin (short cut) to read EC-5/10HS sensors with CSI loggers

Instructions

URL, 0.053MB

ECH2O CSI - Scwin (shortcut)

Software

EXE, 1MB

**Soil moisture sensor calibration guide

Instructions

PDF, 0.6MB

Sensor wire splicing guide (quick method)

Instructions

PDF, 0.9MB

Sensor wire splicing guide (complete method)

Instructions

PDF, 5MB

Correcting temperature sensitivity of ECH2O soil moisture sensors

Installer

PDF, 690 KB

METER Splice Kit Repair Instruction Video

Instructions

URL, 0.0 kb

VIDEO: ZL6 + ZENTRA Cloud Troubleshooting

Instructions

URL

ECH20 EC-5 FAQs

What is the difference between the FDR method and the capacitance method of VMC measurement? Are they the same?: They are technically not the same. For the strictest technical accuracy, FDR makes a frequency scan and capacitance measures the charge time of a capacitor. From a practical standpoint there is little difference in the performance.

How can I perform a soil sensor calibration?: The soil sensor calibration written instructions are here. Watch the video for soil-specific calibration here.

How can I splice a broken wire?: You can use the quick method (instructions here) or the complete method (instructions here).

Updating METER digital sensors

One of the advantages of digital sensors is the ability to update their programming (firmware) without sending the sensors back to METER or even excavating them from the field. While it is seldom necessary to update sensors, we do recommend updates on occasion to improve probe performance or resolve problems. Please contact your METER representative before updating any of your sensors.

Updating sensors using ProCheck

If the need does arise to update the program on your sensors, you will need:

A computer that can run Windows or a Windows emulator.
A ProCheck handheld reader.
The relevant updater provided by your METER representative.

Please follow these steps to update the sensor:

Install the updater file onto your computer. It can typically be acquired through a web link provided by your METER representative.
Connect your METER digital sensor to your ProCheck through the stereo connector or pigtail to stereo adapter if you have sensors with bare leads.
Connect the ProCheck to your computer using the serial to USB adapter included in the ProCheck kit. If you do not have any METER software installed on your computer, you will need to install the USB driver. Please close any open METER software.
Run the updater from your computer.

The update should take 3 – 5 minutes. You can see the current version of firmware that your sensor is running in the lower left corner of your ProCheck screen when it is reading the sensor. Please contact us if you require a firmware update but do not own a ProCheck. We may be able to arrange a loaner. Do not hesitate to contact [email protected] or call 509-332-5600 if you have any questions.

Why don't your soil moisture sensors measure with 1% accuracy like some others spec'd?

There are two elements to the accuracy of time-domain reflectometry (TDR), frequency domain reflectometry (FDR), and capacitance sensors:

How well the sensors measure the dielectric permittivity of the soil; and
How well the calibration converts that measurement to water content.

Due to inherent variability in soil physical properties, it is impossible for a dielectric sensor to measure within 1% water content accuracy across a broad range of soil types, even with a perfect measurement of dielectric permittivity. Beware sensors that claim an unbelievable accuracy in all substrates.
